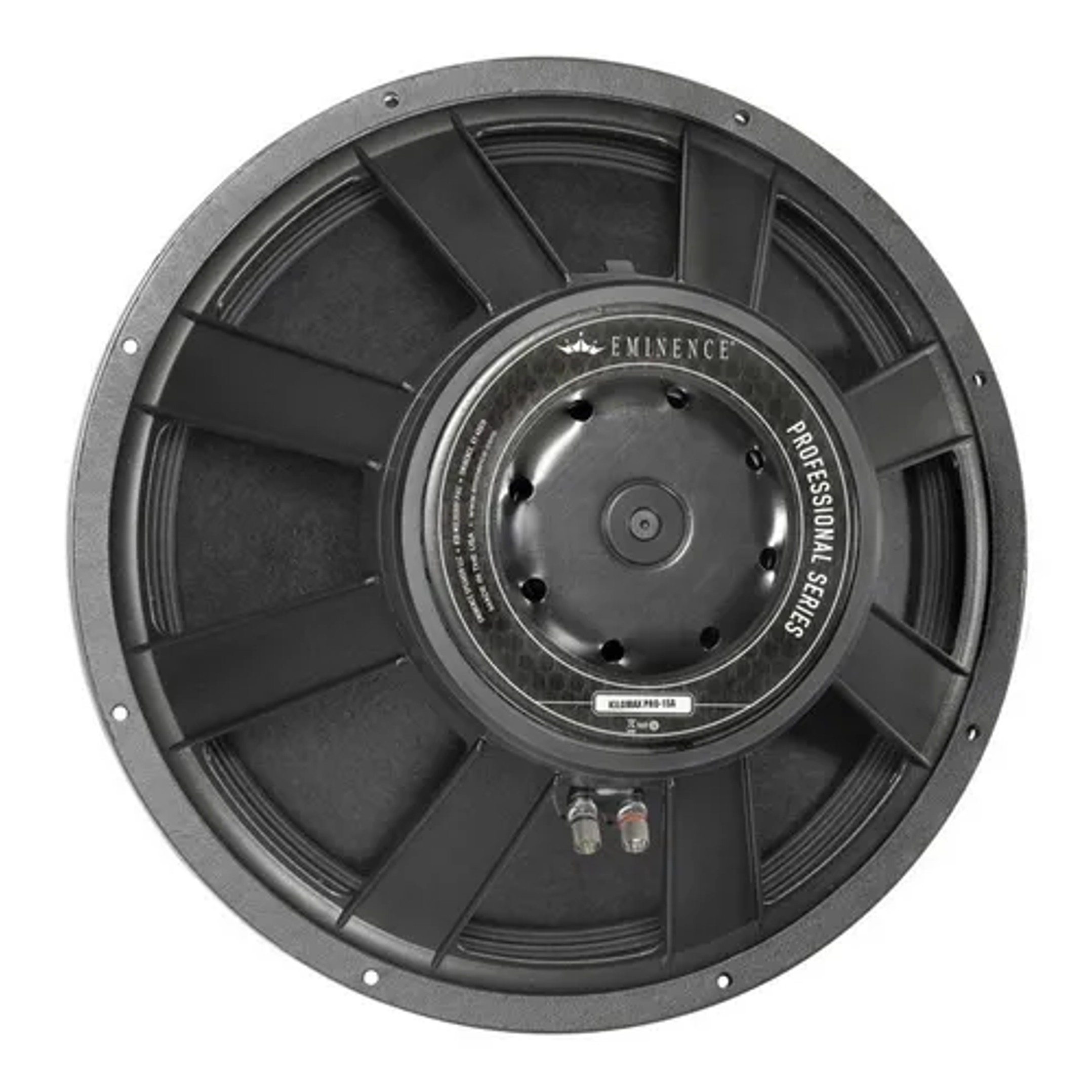

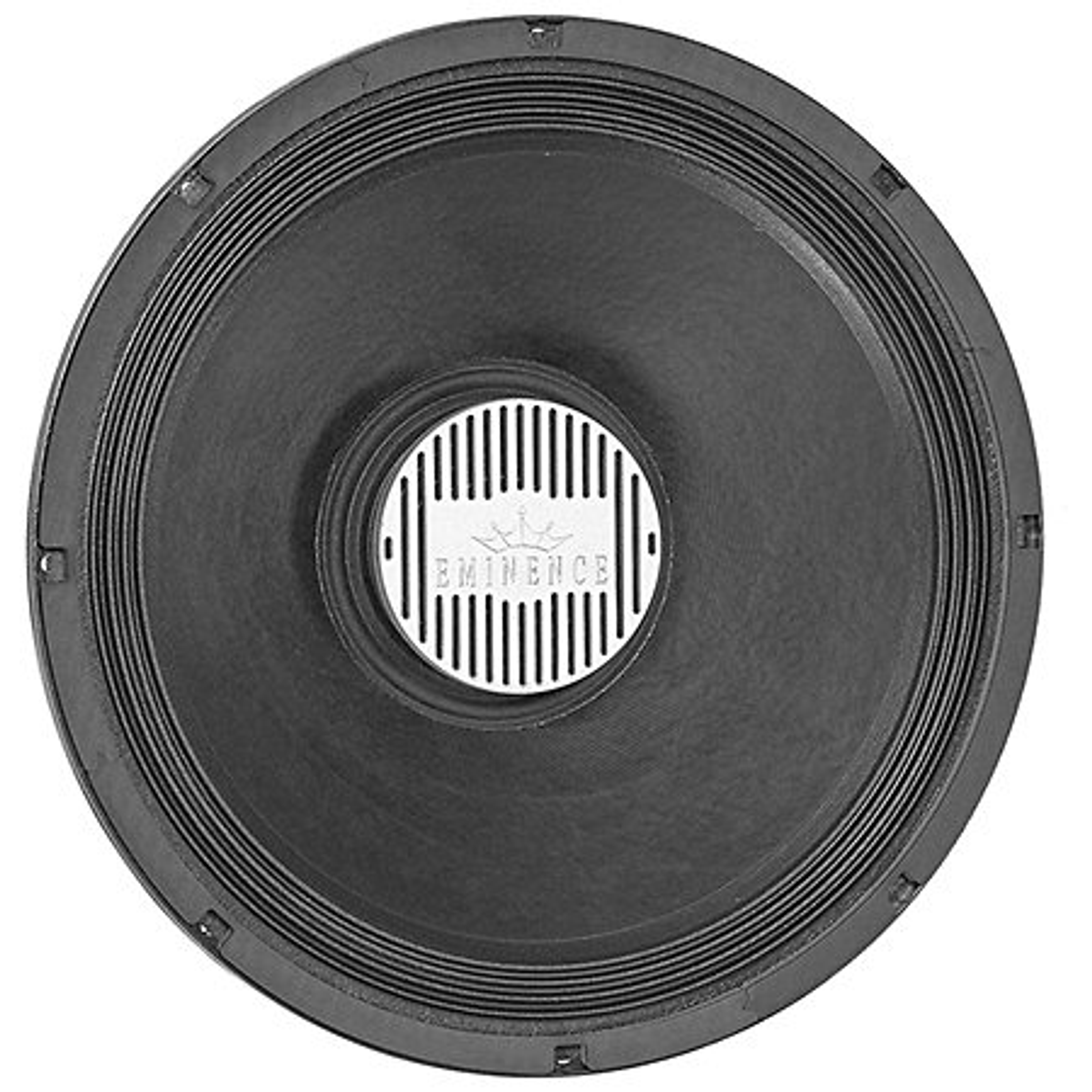

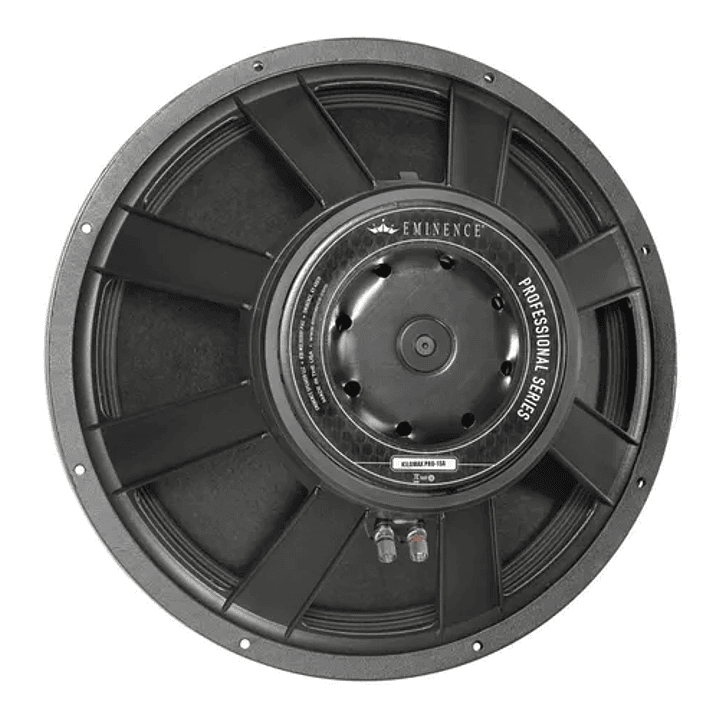

Eminence kilomax 15A

Specification

Nominal Basket Diameter

15.0”, 381 mm

Nominal Impedance*

8 Ω

Power Rating**

Watts

1250 W

Music Program

2500 W

Resonance

41 Hz

Usable Frequency Range

44 Hz – 0.8 kHz

Sensitivity***

95.5 dB

Magnet Weight

109 oz.

Gap Height

.375”, 9.5 mm

Voice Coil Diameter

4.0”, 102 mm

Materials of Construction

Copper voice coil

Polyimide former

Ferrite magnet

Extended core with Core Periphery Ventilation

Die-cast aluminum basket

Paper cone

Cloth cone edge

Porous cloth top spider/ heatsink

learn more at eminence.com

otes Map

THiele & SMall paraMeterS*

Fs

41 Hz

Re

4.97 Ω

MountinG inforMation

Recommended Enclosure Volume

Sealed

N/A

Le

1.78 mH

Qms

8.80

Vented

Qes

0.40

82.00–176.00 liters,

2.90–6.20 cu.ft.

Qts

0.39

Driver Volume Displaced

0.152 cu.ft., 4.31 liters

Vas

5.46 cu.ft., 154.50 liters

Overall Diameter

15.21’’, 386.3 mm

Vd

677.0 cc

Baffle Hole Diameter

14.00’’, 355.6 mm

Cms

0.15 mm/N

Front Sealing Gasket

Yes

BL

17.70 T-M

Rear Sealing Gasket

Yes

Mms

98 grams

Mounting Holes Diameter

0.28’’, 7.1 mm

EBP

103

Mounting Holes B.C.D.

14.56’’, 369.8 mm

Xmax

7.90 mm

Depth

6.42”, 163.1 mm

Sd

856.3 cm2

Net Weight

24.70 lbs , 11.20 kg

Xlim

13.5 mm

Shipping Weight

27.10 lbs , 12.29 kg
